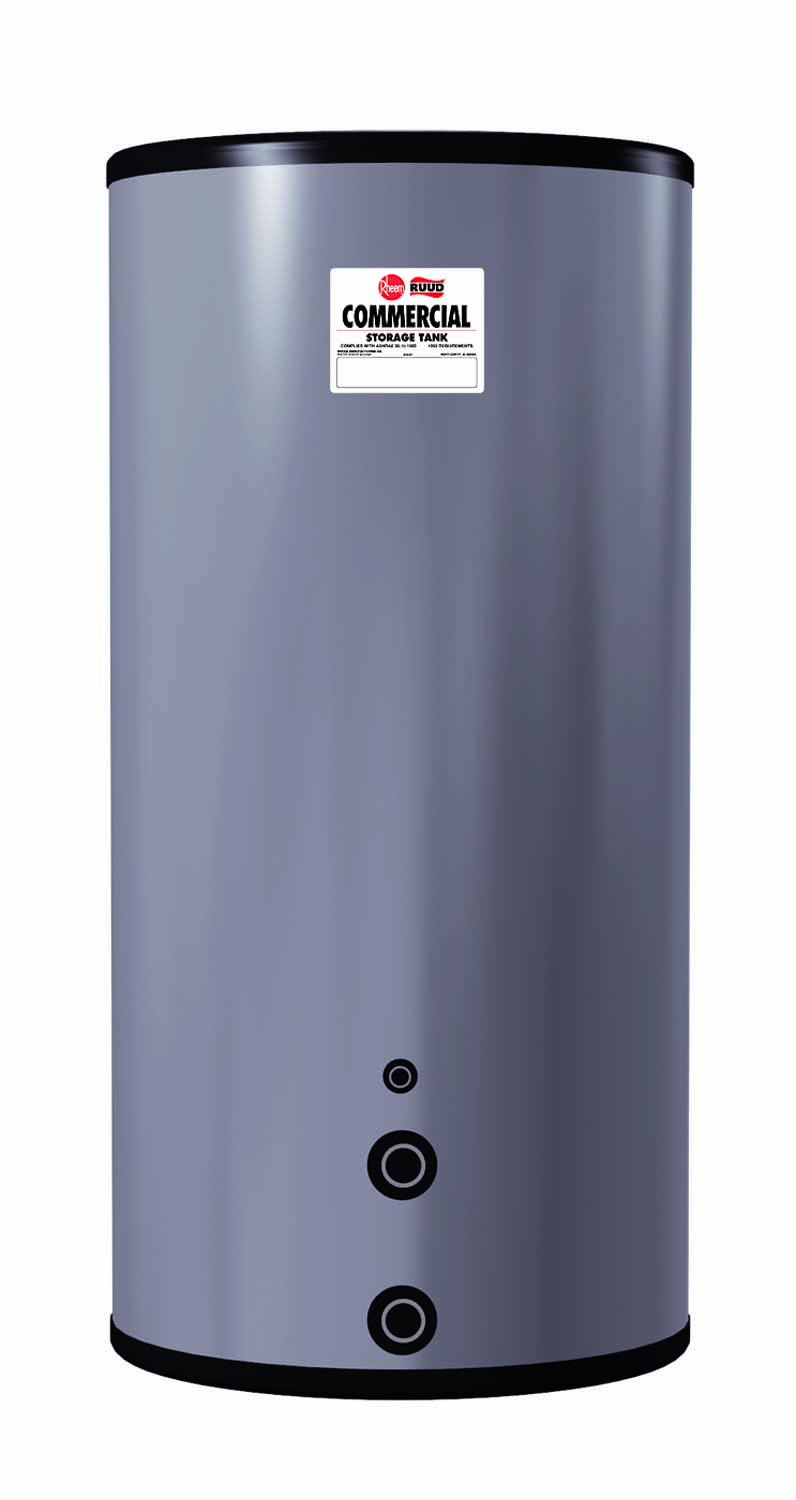

High Volume Storage Tanks

Features
    • 80% draw capability without an appreciable temperature decrease
    • Heavy duty magnesium anode rod(s) are installed for longer tank life.
    • All commercial storage tank models are certified to ASME boiler and pressure vessel code standards.
    • Baked enamel steel jacket
    • Rigid 2" polyurethane foam insulation provides superior insulating qualities and results in reduced operating costs
    • Unique steel formulation with high temperature porcelain enamel maximizes corrosion resistance and results in a superior tank design.
Specifications
    • 2" Insulation Thickness
    • Circulating line/cold inlet connections are 3" NPT (2-1/2" on 200 gallon) and hot outlet is 2".
    • ASME rated
    • 200, 260, 320, 430, 500, 750 and 950 gallon capacities
    • Maximum working pressure of 150 PSI (10 BARS)
