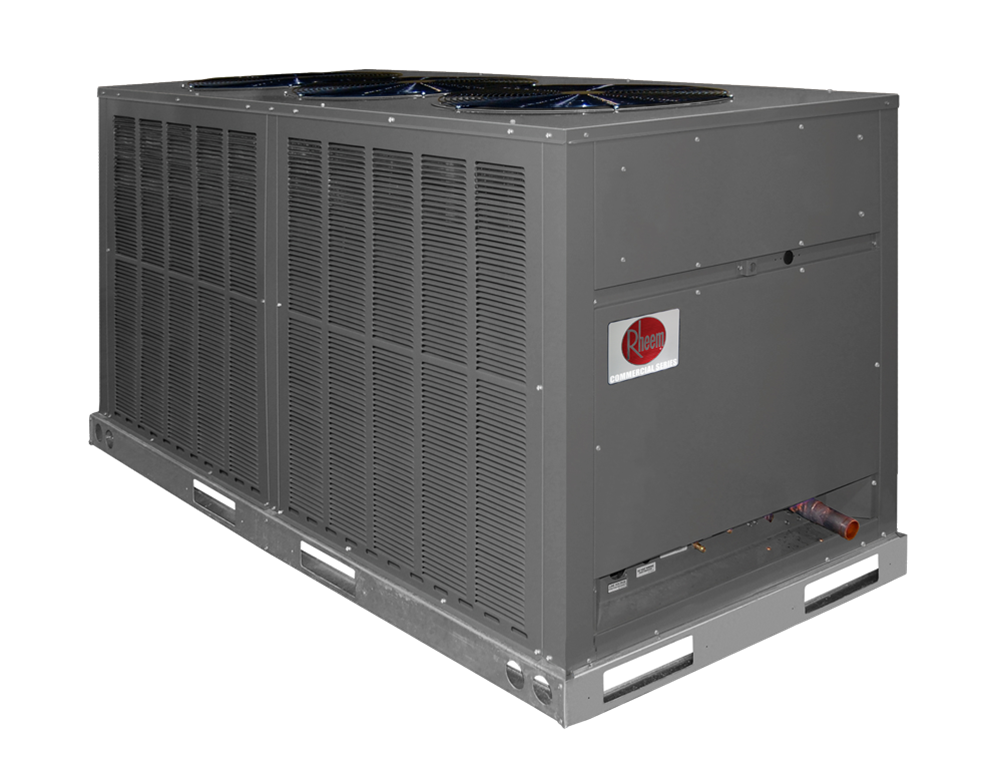

Classic Plus SAWL+SHGL (60Hz)

Features
    • Stamped louver panels offer 100% protection for the condenser coil
    • Scroll Compressor with internal high temperature protection and durable insulation on motor windings
    • Crankcase heater to prevent liquid refrigerant migration to compressor
    • Low ambient control (optional) allows operation of unit down to 0°F
    • High and Low pressure control for system protection during abnormal condition
    • Compressor Time Delay Control on tandem compressors
    • Filter drier as standard feature for each unit
    • Thermostatic Expansion Valves are standard for all models
    • One-inch throw-away filter is standard for all models
    • Basepan and cabinet are made of G90 galvanized steel with a durable paint finish capable of withstanding 1008-Hr salt spray test per ASTM-B117
    • Evaporator coil has two circuit, interlaced row split coils
